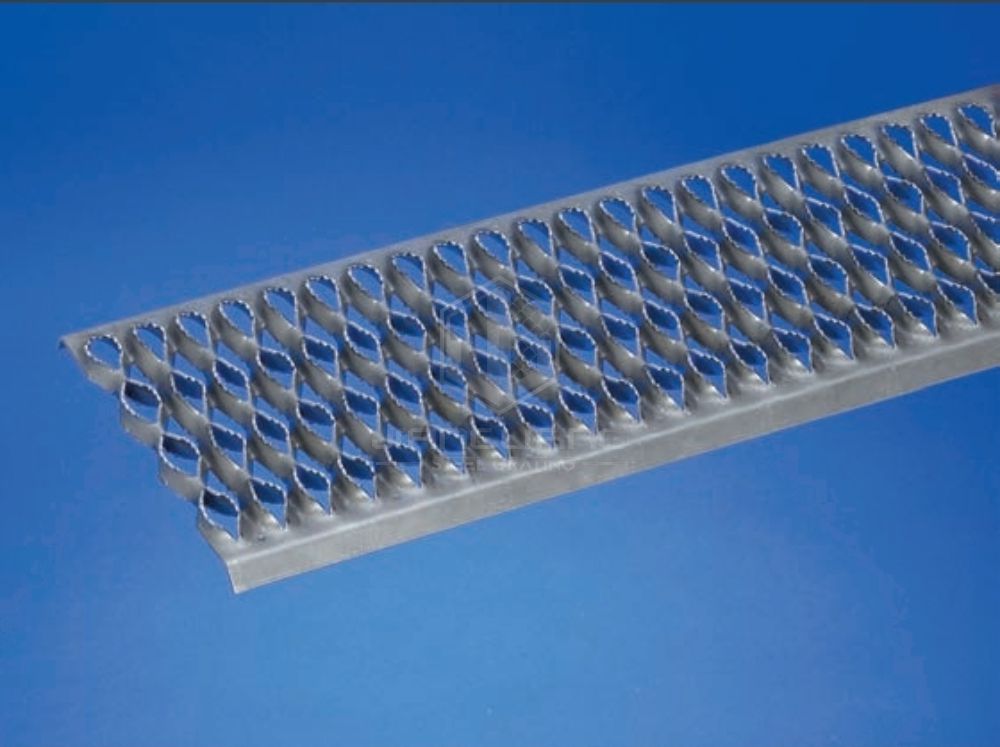

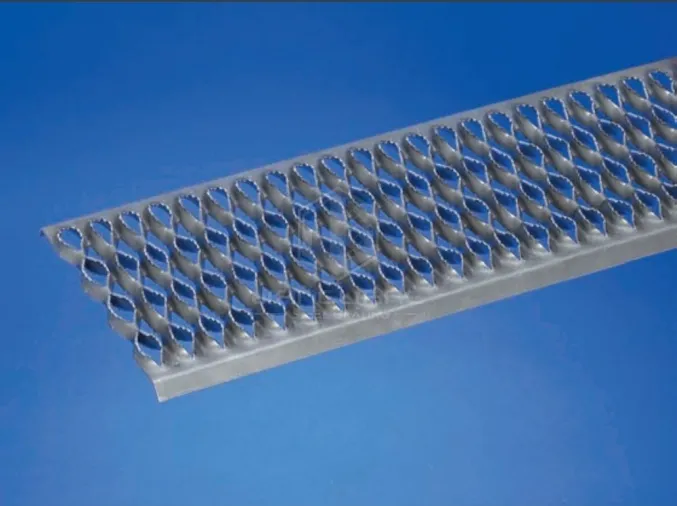

Diamond-Strut Safety Grating

Safer, serrated surface

Grips soles securely in all directions. The non-slip GRIP STRUT surface is ideal for inside or outside locations where mud, ice, snow, oil and detergents can create hazardous walking conditions. Openings are small enough to catch most falling tools and other dangerous objects.

Open design, convenient cleaning

Permits quick drainage of fluids, chips, grease and mud. Any ice accumulation shears easily under normal foot pressure. Open design allows convenient access for cleaning, and is easily cleaned with brush, liquid or air spray to help minimize overall maintenance.

High load capacity, long life

High strength-to-weight performance is achieved through depth of section and structural design. Bridged struts with integral side channels form a plank that can support loads with minimum transverse and longitudinal deflection. There are no rivets or pressure joints to break or loosen. This sturdy construction provides the advantages of heavy load-carrying capacity with minimal deflection; rugged durability with longer-lasting performance.

Fast Installation

Light, easy-to-handle planks make installation simpler and quicker. They can be handled by one man. Most sections are rapidly bolted, clamped or welded into place, easily field-cut at virtually any angle, or fabricated to adapt to field conditions. Several attachment devices permit fastening to most existing surfaces; allow fast installation or disassembly.

Versatile in application

A variety of standard widths and channel heights combine with numerous non-standard shapes and sizes to meet almost any requirement of strength, size, durability, weight, finish, appearance and application. GRIP STRUT safety grating combines safety and durability with ease of fabrication and versatility. One piece construction with no welds or rivets to fail, minimizes need for plant fabrication. Special shapes and forming can be accomplished to suit unusual requirements.
