Steel Grating Trench Grates & Frames – Efficient Solution for Water Drainage

Jiangliang Steel Grating offers high-quality trench grates and frames, fabricated from premium stainless steel (grades 316 or 304), providing a durable and efficient solution for water drainage and management systems. These products are suitable for various applications, including residential, commercial, industrial, and civil sectors such as driveways, carports, parking lots, loading docks, roadways, crossovers, and airports.

Trench grates and frames are essential components of trench drain systems, designed to efficiently channel surface water while providing safe passage for pedestrians and vehicles. They are commonly used in various applications, including urban streetscapes, industrial facilities, and residential areas.

E-mail admin@steelbargrating.com WhatsApp +86 150 3015 7766

Trench Grates

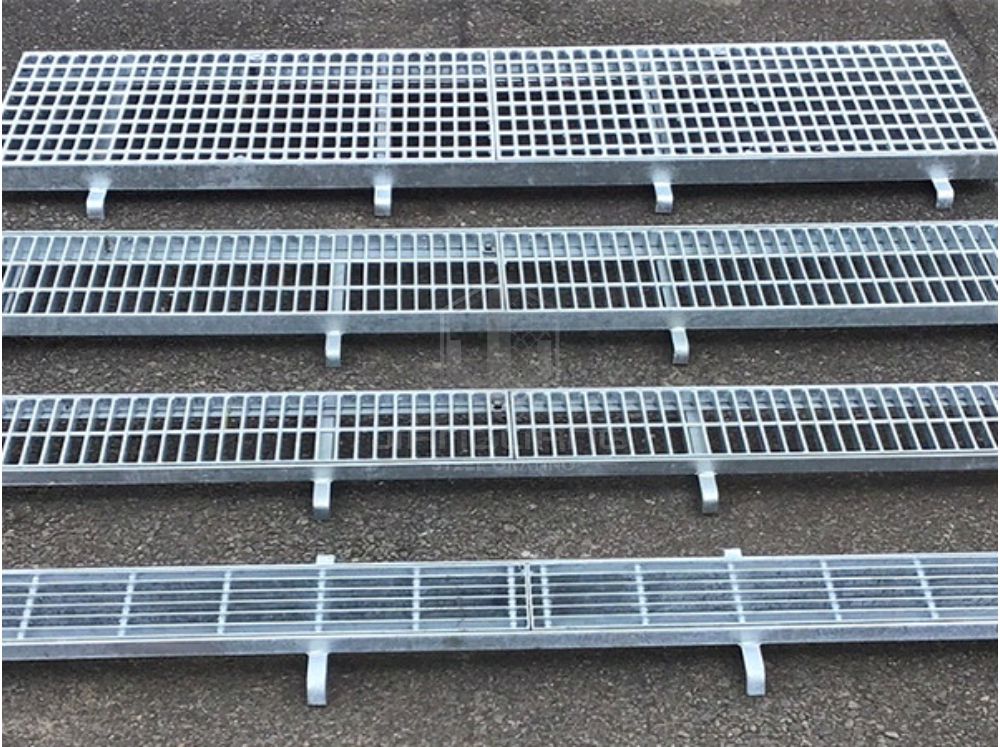

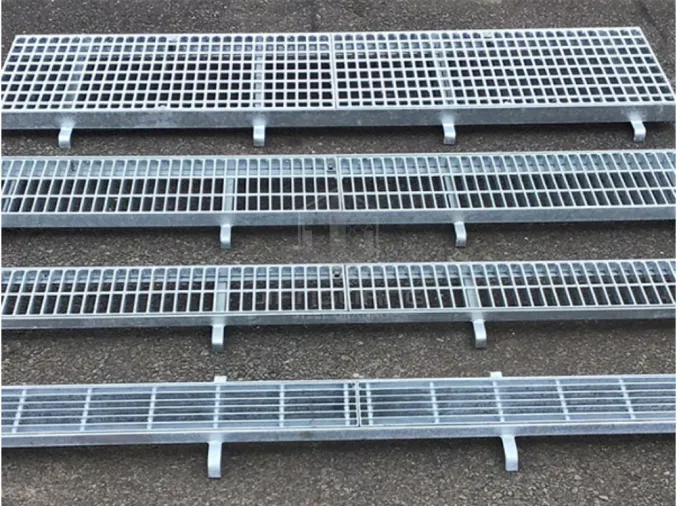

Trench grates cover the drainage channels, allowing water to enter while preventing debris and large objects from obstructing the flow. They come in various materials, including cast iron, ductile iron, galvanized steel, stainless steel, and aluminum. Each material offers distinct advantages:

Cast Iron: Known for durability and strength, suitable for heavy-duty applications.

Ductile Iron: Combines strength with ductility, making it resistant to cracking under heavy loads.

Galvanized Steel: Offers corrosion resistance and is often used in industrial settings.

Stainless Steel: Provides superior corrosion resistance, ideal for environments exposed to harsh chemicals or marine conditions.

Aluminum: Lightweight and resistant to corrosion, suitable for pedestrian areas.

Grates also vary in design, with options like parallel grates, perpendicular cross-street drainage, and ADA-compliant variations. They are available in various widths, typically ranging from 6 inches to 26 inches, to accommodate different drainage needs.

Trench Frames

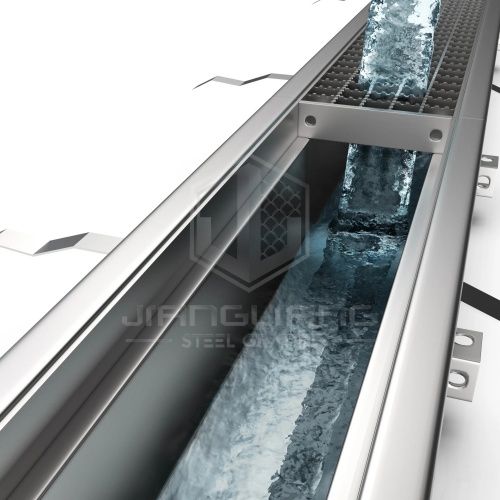

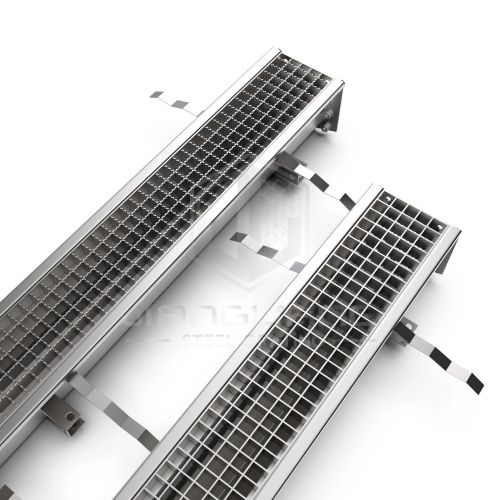

Trench frames serve as the structural boundary for the trench drain system, providing support and securing the grates in place. They are typically made from materials like cast iron, steel, or polymer concrete, chosen based on the required load-bearing capacity and environmental conditions. Frames are available in various styles, including standard, Z-frame, and angle frames, each offering different installation and load distribution characteristics.

Selecting Trench Grates and Frames

When choosing trench grates and frames, consider the following factors:

Load Requirements: Determine the expected traffic load (pedestrian, light vehicle, heavy-duty) to select appropriately rated materials and designs.

Environmental Conditions: Assess exposure to corrosive elements, chemicals, or extreme temperatures to choose materials with suitable resistance.

Design and Aesthetics: Select patterns and finishes that complement the surrounding architecture and meet functional requirements, such as ADA compliance.

Installation and Maintenance: Consider ease of installation and the level of maintenance required over the system's lifespan.

For comprehensive solutions and a wide range of options, we offer diverse trench drain systems, including frame and grate assemblies tailored to various applications.

Proper selection and installation of trench grates and frames are crucial for effective drainage, safety, and the longevity of the drainage system.

Package and Ship

For secure transportation, we offer the following packaging options:

Strap Packing: Ideal for small-sized press-locked grating.

Pallet Packing: Suitable for large orders and container loading.

Screw Rod Fixation: Secures the grating in place for safe transit.

Our products are carefully inspected and packaged to meet international shipping standards.

Why Choose Jiangliang?

Hebei Jiangliang Metal Technology Co., Ltd. has over 10 years of experience in the production of high-quality steel grating. We are dedicated to delivering top-tier products tailored to meet the specific needs of our global clients.

Why Choose Jiangliang?

Quality Assurance

Over a decade of industry expertise and innovation in manufacturing steel grating.

Global Delivery

We use advanced technology and premium materials to ensure consistent product quality.

Experience & Expertise

With reliable global shipping options, we ensure timely and secure delivery to your location.

Customization

We offer tailor-made solutions based on your unique project requirements, including customized sizes and finishes.
