Grating Fence

Description

Contemporary architecture requires the utmost attention to the cladding of a building's façade for aesthetic and functional reasons, in new construction projects as well as in renovation projects. In addition to acting as a physical boundary and protecting the building, the façade represents the element that characterizes the image of the entire building, in dialogue with the surrounding architectural and landscape context.

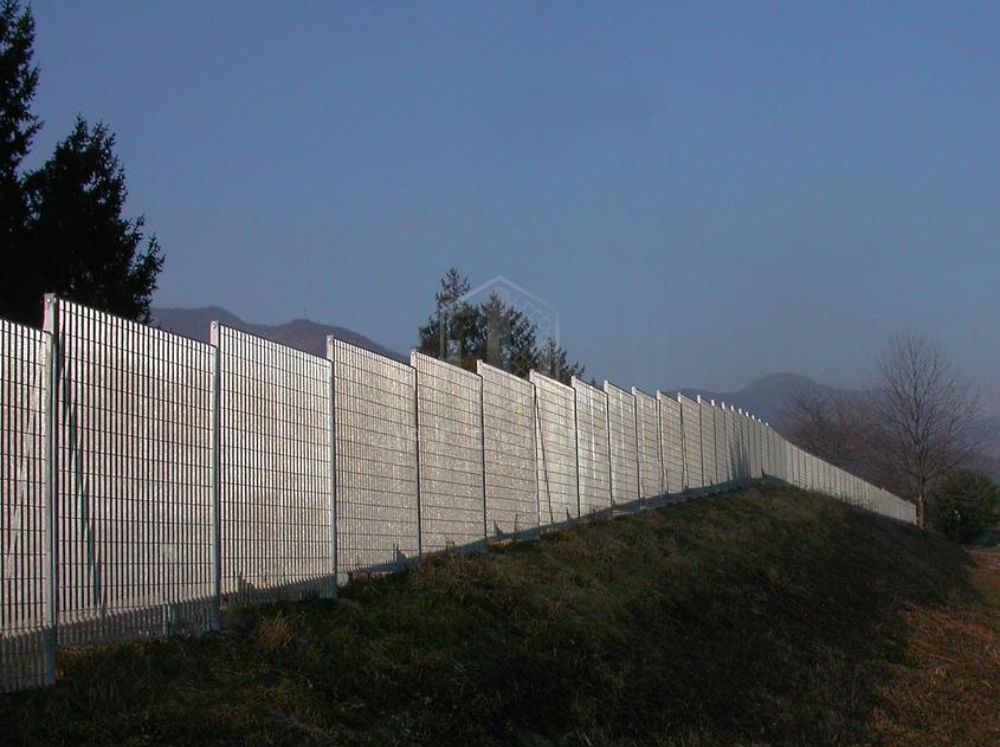

For this particular application area, Jiangliang offers the Grating Fence which is an innovative fencing system that can also be used to cover the facades of large modern urban buildings and design architecture. The refined and essential lines of the Jiangliang solution allow for an envelope capable of satisfying both aesthetic/decorative and functional needs. Very trendy, the facade finish created with Grating Fence protects and embellishes the building,and not only that: the particular metal mesh created allows for unprecedented plays of light and transparency. The highly aesthetic effect increases the appeal and increases the architectural value of public, commercial and industrial buildings, especially in urban contexts.It is also ideal for the recovery of existing buildings with deteriorated exteriors, both civil and industrial.

E-mail admin@steelbargrating.com WhatsApp +86 150 3015 7766

Specification

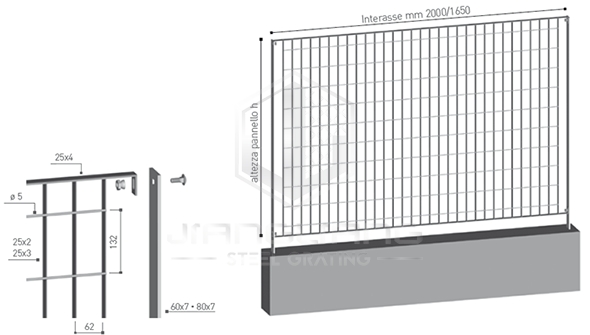

● Our grating fencings are available in stock in modules that are always hot-dip galvanized, each composed of a panel, a post and two fastening bolts.

● The grating panels are edged and provided with bent hooks and perforations for fastening to posts.

● The post of the Grating Fence are flat posts,they are available in versions to be cemented or pegged, with perforated bar to be fastened to the existing wall.

● The nuts and bolts are normally galvanized. On request they can be provided in stainless steel or in strip-off anti-theft stainless steel.

Grating Fence
Forge Welded Grating				Pressed Grating
Panel Height(mm)	Panel Length(mm)	Mesh Size(mm)	BarSize(mm)	Panel Height(mm)	Panel Length(mm)	Mesh Size(mm)	Bar andConnectionSize(mm)
9351199133114631727	16502000	4344636663132126132	252253	9351199133114631727	16502000	4444/1326666/132999913211/22/33/44/66/132	252-102
Jiangliang provides complete grating fencing systems, supplied with any necessary custom size closing or make-up panels, and also special posts for the corners or for changes in direction, and shaped panels or special posts for the beginning and ends of fence sections.

Grating Fence

Package and Ship

For secure transportation, we offer the following packaging options:

Strap Packing: Ideal for small-sized press-locked grating.

Pallet Packing: Suitable for large orders and container loading.

Screw Rod Fixation: Secures the grating in place for safe transit.

Our products are carefully inspected and packaged to meet international shipping standards.

Why Choose Jiangliang?

Hebei Jiangliang Metal Technology Co., Ltd. has over 10 years of experience in the production of high-quality steel grating. We are dedicated to delivering top-tier products tailored to meet the specific needs of our global clients.

Why Choose Jiangliang?

Quality Assurance

Over a decade of industry expertise and innovation in manufacturing steel grating.

Global Delivery

We use advanced technology and premium materials to ensure consistent product quality.

Experience & Expertise

With reliable global shipping options, we ensure timely and secure delivery to your location.

Customization

We offer tailor-made solutions based on your unique project requirements, including customized sizes and finishes.
